Easily disinfectable touchscreen solution for telematics infrastructure applications
CHERRY eHealth-Terminal ST-1506

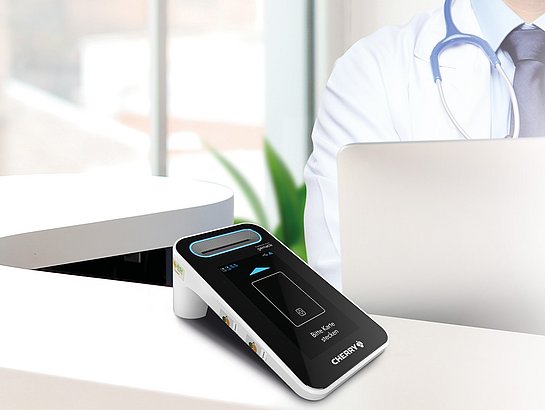

The CHERRY eHealth Terminal ST-1506, approved by gematik, is the modern and hygienic solution for workplaces in the healthcare sector. Equipped with a high-resolution color display and a robust glass surface, the CHERRY eHealth terminal can be operated intuitively and easily disinfected. It is ideal for use in doctor's offices, clinics and pharmacies and is also a real design highlight.
Highlights
- gematik approval
- Easily disinfectable touchscreen glass surface for optimum hygiene
- High-resolution colour display (720p, 5") for good readability and intuitive
- operation
- USB port for the optional eHealth PIN-Pad PP-1516
- Card slots for eGK, HBA, SMC-B and g-SMC-KT
- eGK and HBA slot with ESD discharge for electrostatically charged cards
- Power-over-Ethernet (power supply without power supply unit)
- Prepared for reading contactless cards via NFC interface
- VPN client for the support of TI-as-a-Service infrastructures
- High integration capability through web service (e.g. remote administration REST
- API)
- Up to 3 SMC-Bs can be used
- Support for gSMC-KT 2.1 cards (RSA & ECC)
- Support for MACs via USB (USB-ECM)
- Extensive tamper protection
- Kensington lock
- Cable management
- One-hand operation
- 2-year warranty
Notes:
- Can be used with gSMC-KT version 2.1.
- CHERRY distributes the eHealth Terminal ST-1506 only in conjunction with gSMC-KTs, see gematik specification A_23357
- Secure supply chain required. Available* from the following sources of supply: eHealth sources of supply - Cherry
*Not available in the US
eHealth Terminal ST-1506
Easily disinfectable touchscreen solution for telematics infrastructure applications
Your entry into the telematics infrastructure and the German digital healthcare system: The eHealth terminal from CHERRY. With its modern design, wipeable and disinfectable surfaces and four card slots, the eHealth terminal is not only technically impressive, but is also a real visual highlight on your reception desk or in the treatment room. Since gematik approval in March 2021, the CHERRY eHealth Terminal has been an indispensable part of many doctors' surgeries, clinics and pharmacies and now, with the eHealth PIN pad, it has also gotten the ideal addition for many telematics infrastructure applications.
The key features of the CHERRY eHealth terminal
The Display
Easy to disinfect and stable: the glass surface of the eHealth terminal ensures optimum hygiene and thus helps to minimise the spread of germs and viruses. Its high-resolution colour display makes it easy to use and intuitive to operate.
The card slots
The true strengths of the eHealth terminal lie within: Four card slots and a contactless reader enable authentication and connection to the digital healthcare network - the telematics infrastructure. The electronic health card (eGK) and the health professional card (HBA) can be accommodated here, as can the SMC-B and gSMC-KT. An ESD discharge for electrostatically charged cards ensures stable operation in all seasons.
The connections
The choice is yours: the CHERRY eHealth Terminal can be connected to your network via LAN (power supply or PoE) or USB. The USB connection is particularly simple and convenient thanks to the CHERRY ‘eHealth USB-LAN Proxy’ software. In addition, the CHERRY eHealth PIN pad can also be connected to the eHealth Terminal via USB.
Remote management
Thanks to the REST API, all eHealth terminal settings (e.g. entering the SMC-B PIN) can be carried out remotely via a web browser. The VPN client also supports the use of TI-as-a-Service infrastructures. The terminal is therefore future-proof for processes in the evolving TI.
Perfect combination: eHealth terminal and PIN pad
The CHERRY eHealth PIN pad PP-1516 is an optional accessory and complements the card terminal for a holistic, modern solution for workplaces in the healthcare sector.
Telematics infrastructure applications (e.g. eMP, NFDM, ePA) require the patient to enter a PIN. The easily disinfectable PIN pad is placed on the patient's side, making it easy and convenient to enter the PIN. In conjunction with the card terminal, the PP-1516 PIN pad ensures a clear separation between patients and healthcare professionals, making the workflow even more efficient and optimising hygiene
Approved and awarded
The terminal is approved by gematik for use in the telematics infrastructure and has been honoured with the IF Design Award.
Firmware Updates
The latest technical features are ensured with the firmware updates. Update 4.0.0 in particular includes the majority of the terminal's listed features. Even more powerful. Even simpler. Even more flexible.
The technical strengths of the CHERRY eHealth Terminal ST-1506
Are you an IT professional? Then you will find a detailed list of all the technical features of the CHERRY eHealth terminal here:
VPN client for the support of TI-as-a-Service infrastructures
From FW 3.x, the e-health terminal ST-1506 supports the establishment of a direct VPN connection between the terminal and a VPN gateway. This allows connectors that are operated in a data centre to establish a direct secure connection to the terminal in the service provider environment. This may be necessary for TI-as-a-Service environments, for example. Reliability is increased and maintenance costs are minimised
Prerequisites:
- The data centre in which the connector is operated is accessible via an IPSec VPN service
- IP address of the VPN server
- X.509 CA certificate of the server
- Access data: MSCHAP via user name/password & EAP TLS via certificate-based authentication
- Administration via web interface or web service
Support of gSMC-KT safety cards version 2.1
This security card prescribed by the BSI serves to increase the security level in the TI, particularly with regard to patient data.
All previous gSMC-KT versions are technically supported; from the changeover to elliptic curves, only the new gSMC-KT 2.1 can be used
Note on runtime: The decision on how long which crypto-algorithms will be used in the German healthcare system is made by gematik in consultation with the BSI. This may result in deviations in the runtime of individual cards in the field when using the gSMC-KT in the telematics infrastructure.
Remote management via REST API
Using the REST API, all terminal settings can be made remotely via the web interface or web service.
This has decisive advantages:
- Increased convenience through read/write access
- Time savings during installation and remote maintenance
- Extended monitoring due to increased range of functions
The REST-API function also enables remote PIN entry of the SMC-B and is therefore ideal for larger institutions with data centres or for TI-as-a-Service environments.
MAC support via USB
Support for MACs via USB (USB-ECM), especially for service providers (doctors, pharmacists, care home operators, etc.)
Are you a practice owner or pharmacist and want to know more about the technical details? You can find all the information here:
Support for gSMC-KT safety cards version 2.1
Security card prescribed by the BSI to increase the security level in the telematics infrastructure.
All previous gSMC-KT versions are technically supported. From the changeover to elliptic curves, only new gSMC-KT 2.1 can be used
Note on runtime: The decision on how long which crypto-algorithms will be used in the German healthcare system is made by gematik in consultation with the BSI. This may result in deviations in the runtime of individual cards in the field when using the gSMC-KT in the telematics infrastructure.
Now available for MAC: Connection via USB
Support for MACs via USB (USB-ECM), especially for service providers (doctors, pharmacists, care home operators, etc.)
Are you looking for firmware updates and new software tools?
You can find detailed information in our download area.
Do you have technical questions?
Then talk to us personally on the service number: +49 9643 2061-100
You can reach us during our service hours from:
Monday - Thursday: 09:00 to 16:00
Friday: 09:00 to 12:00
Do you want to stay up to date?
Then sign up for our newsletter. We will inform you regularly about all updates to our products. You will also receive information on the latest products and where you can meet us at trade fairs.
Properties
| Warranty | 2 years warranty |
|---|---|
| Cable length | 6.56 ft |
| Operating system | Linux, Mac OS, Windows 7 or higher |
| System Requirements-Hardware | RJ45, USB port (requires RNDIS/ECM functionality in the operating system used), gSMC-KT, Connector |
| Length of product without packaging | 7,68 in |
| Width of product without packaging | 4,09 in |
| Height of product without packaging | 2,99 in |
| Scope of delivery | Manual, 4 Slot Seals for ID-000 Slots, USB-cable, power suply, network cable, eHealth Terminal |
Scope of delivery
- Manual
- 4 Slot Seals for ID-000 Slots
- USB-cable
- power suply
- network cable
- eHealth Terminal
| Article number | Color | ||
|---|---|---|---|
|
ST-1506AFHZ EAN: 4025112091179 |
white |
