Quick-witted, fast and direct

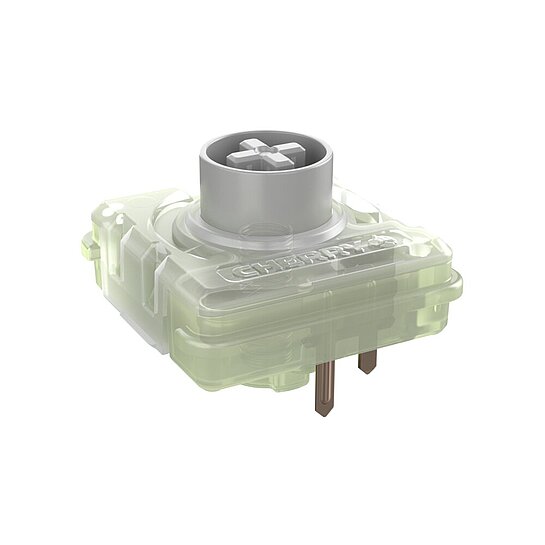

CHERRY MX LOW PROFILE SPEED
Thanks to the successful switch characteristics of the MX SPEED SILVER combined with a particularly low overall height, the CHERRY MX LOW PROFILE RGB SPEED SILVER triggers directly and extremely quickly. Thanks to the 35 percent lower overall height, the fastest switch in the CHERRY family enables a slim keyboard design and ergonomic working. Thereby, it maintains the successful typing feel of the CHERRY MX Speed Silver and helps to react quick-wittedly and promptly in gaming sessions.
Highlights
- Linear switching
- 45 cN operating force
- 1.0 mm pre travel
- 3.2 mm total travel
- > 100 mil. keystrokes
- No click
The Original
Inside CHERRY MX LOW PROFILE RGB SPEED
1 UPPER HOUSING
Upper Housing is a CAD high precision component made of plastic polymer. With a tolerance of less than 0.01 mm, the component guides the switching slide precisely, forming the CHERRY MX keyswitch’s switching mechanism housing.2 SWITCHING SLIDE / STEM
A CAD high-precision component made of plastic polymer specifically for the CHERRY MX creates the pre travel and the keystroke feel between the upper housing and coil spring. The key cap is attached on the upper part of the stem.3 GOLD CROSSPOINT CONTACT
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch and the basis of its incredible reliability and durability. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This unique CHERRY innovation and ornate gold-plating make the electrical contact enclosure self-cleaning and gives the keyswitch permanent protection against corrosion, guaranteeing the keyswitch for more than 100 million operations.4 PRECISION COIL SPRING
The keyswitch’s coil spring pressure resistance is the CHERRY MX’s sparring partner for your fingers. The high-density molecular structure of the spring’s metal alloy is calculated individually on the keyswitch and consistently optimized for the keyswitch’s specific pressure force.5 HOUSING BASE
Dual-functional, the housing base component is made of plastic polymer and glass fibre. The inner part forms the mounting for the CHERRY MX keyswitch’s switching mechanism. The outer part is both the base and mounting surface for CHERRY’s mechanical keyboards.More about the original
CHERRY MX LOW PROFILE RGB SPEED
Thanks to the successful switch characteristics of the MX SPEED SILVER combined with a particularly low overall height, the CHERRY MX LOW PROFILE RGB SPEED triggers directly and extremely quickly. Thanks to the 35 percent lower overall height, the fastest switch in the CHERRY family enables a slim keyboard design and ergonomic working. Thereby, it maintains the successful typing feel of the CHERRY MX SPEED SILVER and helps to react quick-wittedly and promptly in gaming sessions.
CHERRY MX LOW PROFILE RGB SPEED
Key benefits
- Engineered and Made in Germany
- CHERRY MX LOW PROFILE RGB SPEED switch: Without pressure point, linear light actuation switching function with a defined force of approx. 45cN without contact feedback
- Designed for use with SMD LEDs (RGB or single color)
- More consistent lighting throughout the keycap due to optimized switch design
- Option to use all 16.8 million RGB colors in high luminosity (scope of supply does not include LED)
- SMD LEDs directly mounted on the circuit board for cost-efficient, fully automated production
- High-precision mechanical switch with low operating point tolerance
- World exclusive CHERRY Gold Crosspoint technology
- Short bounce time for high switching frequency (such as for fast typing)
- Self-cleaning contacts
- Switch resistant to dust and dirt
- Over 100 million keystrokes with no loss of quality guaranteed
| CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
|---|---|---|---|
| MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
| MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
| MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
| MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
| MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
| MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
| MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
| MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
| MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
| MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
| MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
| MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
CHERRY MX are the best switches on the market
Properties
| Plunger color | silver |
|---|---|
| Actuation characteristic | linear |
| Initial force | 30 cN |
| Final force | 100 cN |
| Pre-Travel | 1 mm |
| Total key travel | 3,2 mm |
| Contact system | MX Gold Crosspoint |
Scope of delivery
| Article number | Mounting pins | RGB | ||
|---|---|---|---|---|
|
MX2B-52NA EAN: 4025112116902 |
without pins - faceplate mount (3 Pins) | yes |
