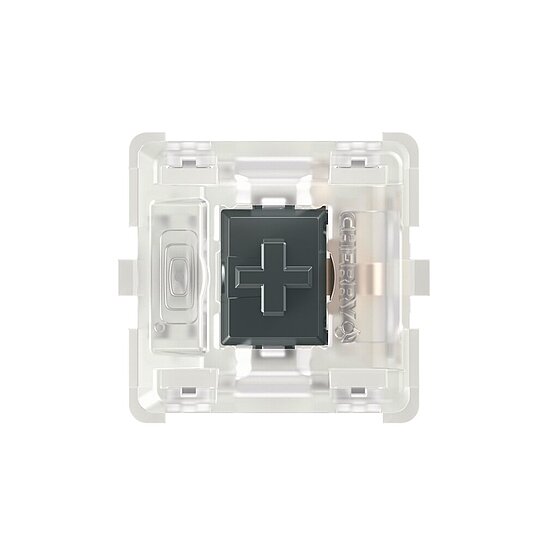

CHERRY MX ULP CLICK
The characteristic of the MX ULTRA LOW PROFILE is not dissimilar to the MX BLUE, as it is also characterized by a tactile feedback. In addition, there is the unique "CHERRY click noise", which means that in addition to tactile feedback, there is also acoustic feedback. Thanks to the noticeable actuation force, the short travel distance and the extremely low height, the switch is suitable for applications such as notebooks, where fast reactions as well as reliable inputs in limited spaces are important.
Highlights
- Tactile and audible switching characteristics
- 65 cN operating force
- 0.8 mm pre travel
- 1.8 mm total travel
- > 50 mil. keystrokes
- With Click
Inside CHERRY MX ULP CLICK
1 SPRING
The spring’s force together with the wings are defining the real mechanical feeling in this ultra thin form factor.2 WINGS
Stainless steel for wings and spring makes the switch robust and ensures a superior lifetime. With the preloaded tension spring it gives the user a very fast activation and a tactile feeling over lifetime. The wings are the connection to the keycap and ensure a parallel and balanced switch movement, even on off center activations.3 ACTUATOR AND POLYMER SOCKET
The actuator defines the pre travel of the switch and activates the click arm.The polymer socket as CAD high precision component holds the Gold Crosspoint contact system in place and is also responsible for homogeneous illumination of the switch.
4 GOLD CROSSPOINT CONTACT SYSTEM
Gold-based, the crosspoint contact is the heart of every CHERRY MX keyswitch. With absolute precision, these triangular cross-contacts meet each other at precise right angles. This proven CHERRY innovation and gold-plating ensures a reliable contact and makes it a true mechanical solution with ergonomic overtravel.5 BASE FRAME
Dual-functional, the base component is made of a special, proprietary metal alloy. It holds the parts together and is the interface to the PCB with the soldering pads.CHERRY MX ULTRA LOW PROFILE CLICK
The characteristic of the MX ULTRA LOW PROFILE is not dissimilar to the MX BLUE, as it is also characterized by a tactile feedback. In addition, there is the unique "CHERRY click noise", which means that in addition to tactile feedback, there is also acoustic feedback. Thanks to the noticeable actuation force, the short travel distance and the extremely low height, the switch is suitable for applications such as notebooks, where fast reactions as well as reliable inputs in limited spaces are important.
Key benefits
- Engineered and Made in Germany
- CHERRY MX ULTRA LOW PROFILE CLICK: High-precision mechanical switch with tactile feeling and audible feedback (with click)
- Ultra-thin design
- Industry-leading CHERRY Gold Crosspoint technology
- Short bounce time for high switching frequency (such as for fast gaming or typing)
- Option to use all 16.8 million RGB colours in high luminosity (scope of supply does not include SMD LED)
- Switch designed for SMD assembly production
- Guaranteed over 50 million keystrokes without loss of quality
| CHERRY MX Switch | How does it type? | Switch characteristics | Keystrokes |
|---|---|---|---|
| MX BLACK | powerful and direct | linear (no click) | > 100 mil. |
| MX BLACK CLEAR TOP | powerful, direct and retro | linear (no click) | > 50 mil. |
| MX BLUE | powerful and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX BROWN | targeted and noticeable | tactile (no click) | > 100 mil. |
| MX CLEAR | focused, powerful and noticeable | tactile (no click) | > 50 mil. |
| MX ERGO CLEAR | targeted, smooth and noticeable | tactile (no click) | > 50 mil. |
| MX GREEN | loud, robust and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX GREY | purposeful, robust and noticeable | tactile (no click) | > 50 mil. |
| MX PURPLE | reactive and tactile | tactile (no click) | > 50 mil. |
| MX RED | smooth-running and directly | linear (no click) | > 100 mil. |
| MX SILENT BLACK | powerful and quiet | linear (no click + quiet) | > 50 mil. |
| MX SILENT RED | smooth-running and quiet | linear (no click + quiet) | > 50 mil. |
| MX SPEED SILVER | fast and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE RED | quick-witted, smooth and direct | linear (no click) | > 100 mil. |
| MX LOW PROFILE SPEED | quick-witted, fast and direct | linear (no click) | > 100 mil. |
| MX ULP CLICK | ultra-low profile, clicky and noticeable | tactile and acoustic (with click) | > 50 mil. |
| MX ULP TACTILE | ultra-low profile, focused and noticeable | tactile (no click) | > 50 mil. |
CHERRY MX are the best switches on the market
Properties
| Plunger color | no |
|---|---|
| Actuation characteristic | tactile |
| Final force | 200 cN |
| Pre-Travel | 0,8 mm |
| Total key travel | 1,8 mm |
| Contact system | MX Gold Crosspoint |
Scope of delivery
| Article number | Mounting pins | RGB | ||
|---|---|---|---|---|
|
MX6C-K3NB EAN: 4025112093111 |
with pin - PCB mount (5 Pins) | yes |
