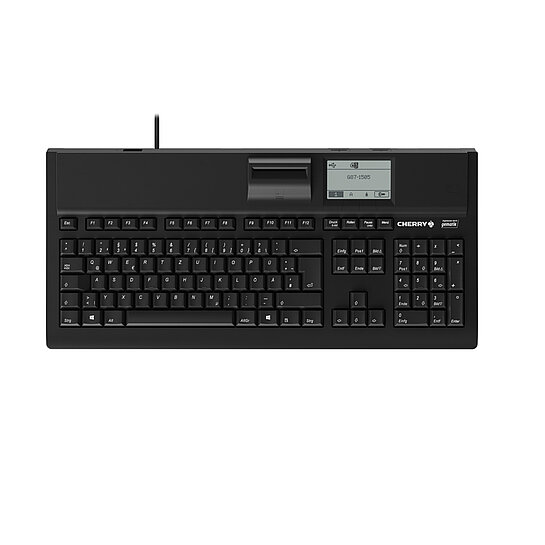

eGK-Tastatur G87-1505
The CHERRY eGK keyboard G87-1505 with integrated card terminal, approved by gematik, is a reliable, space- and cost-saving solution for workplaces in the healthcare sector. Extensive protection against manipulation on the terminal is confirmed by the BSI certification. With the CHERRY software "eHealth USB-LAN Proxy" and the connection using just one USB cable, you save yourself the need for an external LAN interface as well as an additional power supply. The eHealth card terminal can therefore be put into operation quickly and easily without complex cabling in the network. The logical operation of the terminal in combination with the best writing comfort ensures speed and efficiency in the workplace. This means that the proven CHERRY quality will accompany you over the next few years and make your daily work easier, be it in doctor's offices or hospitals.
Highlights
- Smart & fast networked via USB
- Low energy consumption thanks to USB interface
- Simplest and intuitive operation
- Efficiency and convenience: keyboard terminal solution
- Card slots for eGK, HBA, SMC-B and gSMC-KT
- Use with gSMC-KT version 2.1 requires a firmware update (3.3.3). See details below.
- Graphical display for the terminal
- Secure PIN entry
- Keyboard: Approx. 20 million operations
- OPB1 approval (online telematics infrastructure)
- Highest security: BSI certification, gematik approval
- Card terminal: Approx. 300,000 mating cycles (approx. 10 years with 100 insertion cycles per day)
Note:
The use of the gSMC-KT version 2.1 with the eGK keyboard G87-1505 requires a firmware update (3.3.3).
You can download the firmware file in the download area - please follow the instructions in the separate installation guide:
Properties
| Warranty | 2 years warranty |
|---|---|
| Software support | USB LAN Proxy, eHealth Device Manager |
| Cable length | 220 cm |
| Operating system | Linux, Mac OS, Windows 7, Windows 8, Windows 10, Windows 11 |
| System Requirements-Hardware | CHERRY software "eHealth USB-LAN Proxy" for card terminal functions, USB-A connection and USB-supporting operating system (e.g. Windows, Linux or Apple Mac OS) |
| Length of product without packaging | 470 mm |
| Width of product without packaging | 220 mm |
| Height of product without packaging | 79 mm |
| Scope of delivery | Keyboard, Short Manual, 4 Slot Seals for ID-000 Slots |
Properties of the keyboard |
|
| Keycap material | ABS |
| Key labeling | Laser etching |
| Number of keys | 105 |
| Adjustable feet | integrated |
| Status LEDs | no |
| Key technology | Rubberdome |
| Service life per key (in million strokes) | 20 mio. actuations |
| Switching characteristics | linear |
| Keyboard format | Full-size (100%) |
| Integrated metal plate | yes |
| N-Key Rollover | no |
| Anti-ghosting | no |
| Key encryption | no |
Properties of the battery |
|
| Battery rechargeable | no |
| Battery replaceable | no |
| Battery charging socket | no |
Properties of the smart card |
|
| Chip card types | ISO 7816 Cards, gSMC-KT, eGK, HBA, KVK, SMC-B |
Properties of the cable connection |
|
| Cable length | 220 cm |
Scope of delivery
- Keyboard
- Short Manual
- 4 Slot Seals for ID-000 Slots
