Small, flat and extremely robust
CHERRY G84-5200 XS

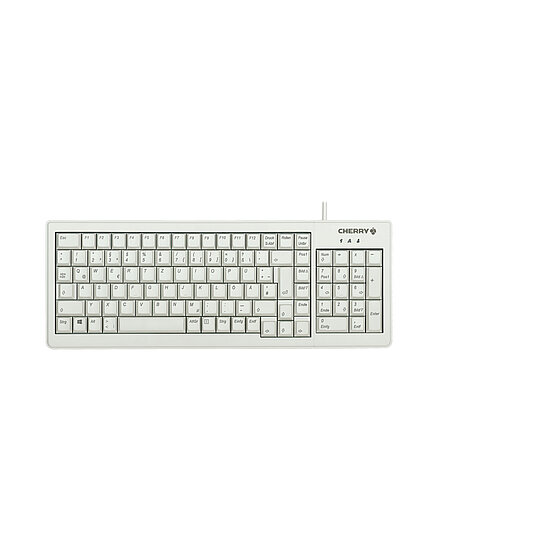

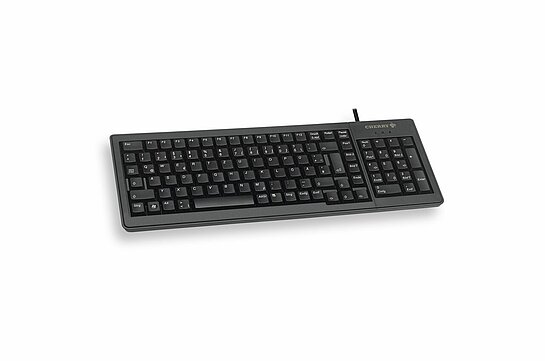

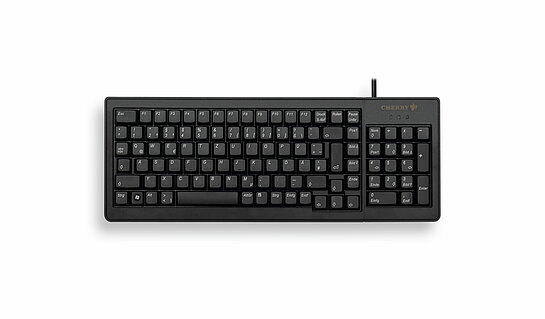

The compact keyboard 'XS Complete' (G84-5200) offers a full keyboard layout complete with number block and is ideal for all applications with limited space and requiring frequent number entries.
Highlights
- Full configuration with numeric keypad Ideal for applications where numbers need to be typed frequently
- High reliability and precise keystroke accuracy due to Gold Crosspoint contacts (Cherry ML technology) on each individual key
- Ideal for continuous use thanks to its high durability of more than 20 million keystrokes for each key

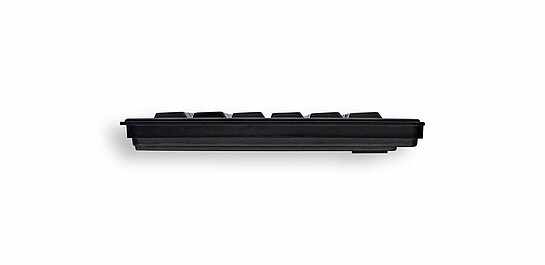

- Compact dimensions and very low overall height, making it ideal for tight spaces and 19” applications
- Uniform dimensions and dimensions are the same for the entire XS product series: the keypad can be selected to match the respective application
- Low weight: for special cases where every gram counts
- Plug & Play: compatible with standard operating system drivers
- Compatible with Code Set 3 and Unified POS
- Clamping option for permanent mounting
- Detachable support legs for individual configuration of the keyboard inclination
- Programmable keys for further time savings
Properties
| Software support | CHERRY KEYS |
|---|---|
| Cable length | 250 cm |
| Operating system | Windows 7, Windows 8, Windows 10, Windows 11 |
| System Requirements-Hardware | USB-A |
| Length of product without packaging | 374 mm |
| Width of product without packaging | 139 mm |
| Height of product without packaging | 20 mm |
| Scope of delivery | Manual, Keyboard |
Properties of the keyboard |
|
| Keycap material | ABS |
| Key labeling | Laser etching |
| Special key functions | FN |
| Adjustable feet | sold separately |
| Status LEDs | in housing |
| Key technology | Mechanical |
| Actuating force (cN) | 50 cN |
| Service life per key (in million strokes) | 20 mio. actuations |
| Switching characteristics | tactile |
| Keyboard format | Compact (75%) |
| N-Key Rollover | no |
| Anti-ghosting | no |
| Key encryption | no |
| Illumination | no |
Properties of the cable connection |
|
| Cable length | 250 cm |
Scope of delivery
- Manual
- Keyboard
| Article number | Layout | Color | ||
|---|---|---|---|---|
|
G84-5200LCMCH-2 EAN: 4025112072260 |
CH (Switzerland) | Black | |
|
G84-5200LCMDE-2 EAN: 4025112071119 |
DE (Germany) | Black | |
|
|
G84-5200LCMES-2 EAN: 4025112073106 |
ES (Spain) | Black | |
|
|
G84-5200LCMEU-2 EAN: 4025112071027 |
EU (USA+ €-Symbol) | Black | |
|
|
G84-5200LCMFR-2 EAN: 4025112072246 |
FR (France) | Black | |
|
|
G84-5200LCMGB-2 EAN: 4025112072253 |
GB (United Kingdom) | Black | |
|
G84-5200LCMCH-0 EAN: 4025112072277 |
CH (Switzerland) | Grey | |
|
|
G84-5200LCMDE-0 EAN: 4025112071126 |
DE (Germany) | Grey | |
|
|
G84-5200LCMEU-0 EAN: 4025112071010 |
EU (USA+ €-Symbol) | Grey | |
|
|
G84-5200LCMFR-0 EAN: 4025112071300 |
FR (France) | Grey |
