Security Keyboard with Integrated Smart Card Terminal

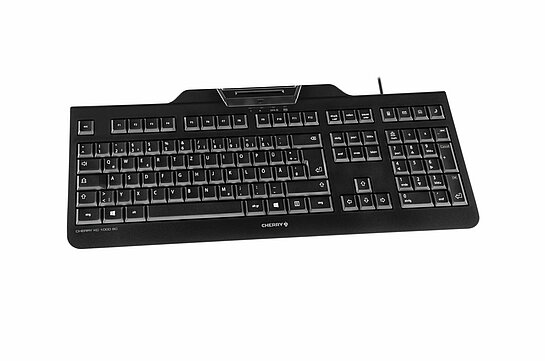

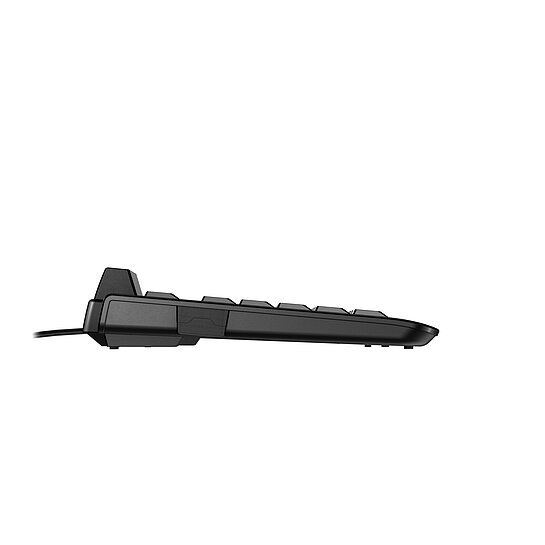

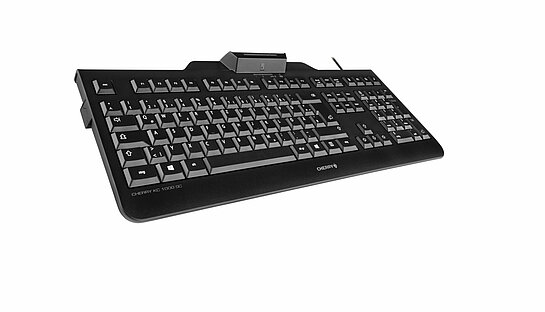

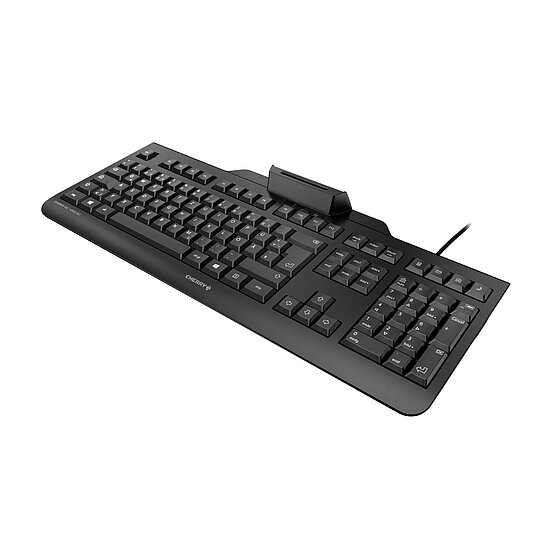

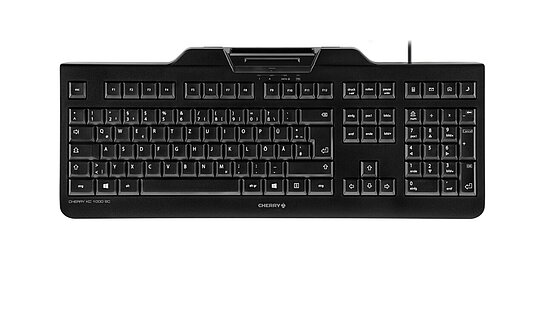

CHERRY KC 1000 SC
Lasting reliability. Timeless elegance. Intelligent concept. CHERRY KC 1000 SC combines the benefits of a classic CHERRY office keyboard with the security-related requirements of a smartcard terminal.
Highlights
- Smart, wired security keyboard with integrated chip card terminal
- Secure PIN entry
- PC/SC smartcard reader
- Protocols: T=0, T=1, S=8, S=9, S=10
- CCID compatible
- Reading/writing ISO 7816 compliant smartcards
- Flat design, low smart card contacting unit
- Satisfies requirements defined by FIPS-201
- German version with DIN/GS compliant layout
- Driver support for Windows/MacOS-X/Linux
- One-handed operation of smart card module
- German version complies with BGI 650 guidance for ergonomics

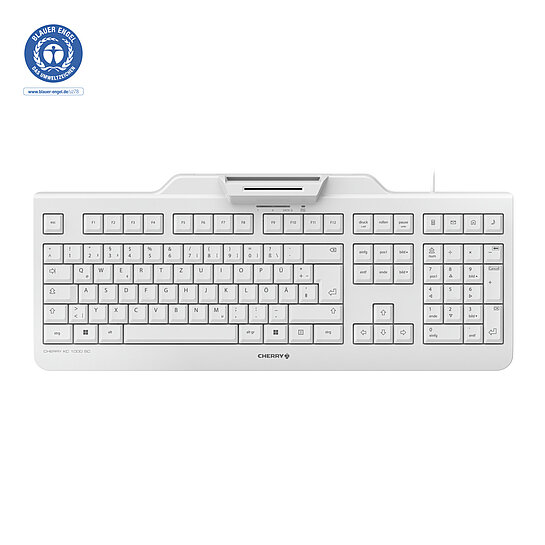

- Awarded the "Blaue Engel" environmental seal
Properties
| Warranty | 3 years warranty |
|---|---|
| Software support | CHERRY KEYS, Card Reader Tools, PC/SC Diagnose Tool |
| Cable length | 180 cm |
| Operating system | Linux, Windows 7, Windows 8, Windows 11, Windows 10 |
| System Requirements-Hardware | USB 2.0, USB-A |
| Length of product without packaging | 458 mm |
| Width of product without packaging | 188 mm |
| Height of product without packaging | 46 mm |
| Scope of delivery | Manual, Keyboard |
Properties of the keyboard |
|
| Keycap material | ABS |
| Key labeling | Laser etching |
| Number of keys | 105 + 4 |
| Special key functions | Calculator, e-mail program, Browser, PC lock |
| Adjustable feet | yes |
| Status LEDs | in housing |
| Key technology | Rubberdome |
| Total Key Travel | 3 mm |
| Pre-Travel | 2,5 mm |
| Actuating force (cN) | 55 cN |
| Service life per key (in million strokes) | 10 mio. actuations |
| Switching characteristics | standard |
| Keyboard format | Full-size (100%) |
| Integrated metal plate | yes |
| N-Key Rollover | no |
| Anti-ghosting | no |
| Key encryption | no |
| Response time | 3-5 ms |
| Internal memory | no |
| Illumination | no |
Properties of the smart card |
|
| Chip card types | ISO 7816 Cards |
Properties of the cable connection |
|
| Cable length | 180 cm |
Downloads
Go to Download CenterScope of delivery
- Manual
- Keyboard
| Article number | Layout | Color | ||
|---|---|---|---|---|
|
JK-A0100BE-2 EAN: 4025112084577 |
BE (Belgium) | Black | |
|
|
JK-A0100CH-2 EAN: 4025112084584 |
CH (Switzerland) | Black | |
|
|
JK-A0100CS-2 EAN: 4025112086830 |
CS (Czech Republic / Slovak Republic) | Black | |
|
|
JK-A0100DE-2 EAN: 4025112083525 |
DE (Germany) | Black | |
|
|
JK-A0100ES-2 EAN: 4025112084591 |
ES (Spain) | Black | |
|
JK-A0100EU-2 EAN: 4025112083532 |
EU (USA+ €-Symbol) | Black | |
|
JK-A0100FR-2 EAN: 4025112084607 |
FR (France) | Black | |
|
JK-A0100GB-2 EAN: 4025112084614 |
GB (United Kingdom) | Black | |
|
|
JK-A0100IT-2 EAN: 4025112084621 |
IT (Italy) | Black | |
|
|
JK-A0100PN-2 EAN: 4025112085130 |
PN (PanNordic) | Black | |
|
|
JK-A0100US-2 EAN: 4025112085376 |
US (USA) | Black | |
|
|
JK-A0101XX-2 EAN: 4025112086939 |
XX (unprinted) | Black | |
|
|
JK-A0103EU-2 EAN: 4025112085864 |
EU (USA+ €-Symbol) | Black | |
|
JK-A0100BE-0 EAN: 4025112084560 |
BE (Belgium) | Grey | |
|
JK-A0100CH-0 EAN: 4025112084676 |
CH (Switzerland) | Grey | |
|
|
JK-A0100DE-0 EAN: 4025112083518 |
DE (Germany) | Grey | |
|
|
JK-A0100ES-0 EAN: 4025112084669 |
ES (Spain) | Grey | |
|
JK-A0100EU-0 EAN: 4025112083501 |
EU (USA+ €-Symbol) | Grey | |
|
JK-A0100FR-0 EAN: 4025112084652 |
FR (France) | Grey | |
|
JK-A0100GB-0 EAN: 4025112084645 |
GB (United Kingdom) | Grey | |
|
|
JK-A0100IT-0 EAN: 4025112084638 |
IT (Italy) | Grey | |
|
|
JK-A0105DE-0 EAN: 4025112086298 |
DE (Germany) | Grey |
